| Технические характеристики AW-UE100 | |
| Вес | 2,2 кг |
| Потребление тока | Main unit: 3.0 A (DC jack input), 1.2 A (PoE++ power supply), AC adaptor (included):Main unit: 3.0 A (DC jack input), 1.2 A (PoE++ power supply), AC adaptor (included):3.0 A |
| Требования к питанию | Main unit: DC 12 V±10% (10.8 V to 13.2 V), AC adaptor: AC 100 V to 240 V |
| PoE++ | Complies with IEEE802.3bt: DC 42 V to 57 V (camera end) (supports softwareComplies with IEEE802.3bt: DC 42 V to 57 V (camera end) (supports softwareauthentication (LLDP communication)) |
| Датчик изображений | 1/2.5-type 4K MOS x 1 |
| Линза | Electric powered 24x optical zoom F1.8 to F4.0 (f = 4.12 mm to 98.9 mm, convertedElectric powered 24x optical zoom F1.8 to F4.0 (f = 4.12 mm to 98.9 mm, convertedto 35 mm: 25.0 mm to 600.0 mm)i.Zoom (UHD: 28x, FHD: 36x) (*switches from optical 24x i.Zoom digital zoom) |
| Угол обзора | Horizontal field of view: 74.1° (wide) to 3.3° (tele), vertical field of view: 46.0° (wide)Horizontal field of view: 74.1° (wide) to 3.3° (tele), vertical field of view: 46.0° (wide)to 1.9° (tele),diagonal field of view: 81.8° (wide) to 3.8° (tele) |
| Горизонтальное разрешение | 1,500 TV lines Typ (center area) |
| Форматы вывода | [4K formats] 2160/59.94p, 2160/50p, 2160/29.97p (native), 2160/25p (native), 2160/24p (native), 2160/23.98p (native) [HD formats] 1080/59.94p, 1080/50p, 1080/29.97p (native), 1080/29.97PsF, 1080/25p (native), 1080/25PsF, 1080/23.98p over 59.94i, 1080/24p (native), 1080/23.98p (native), 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |

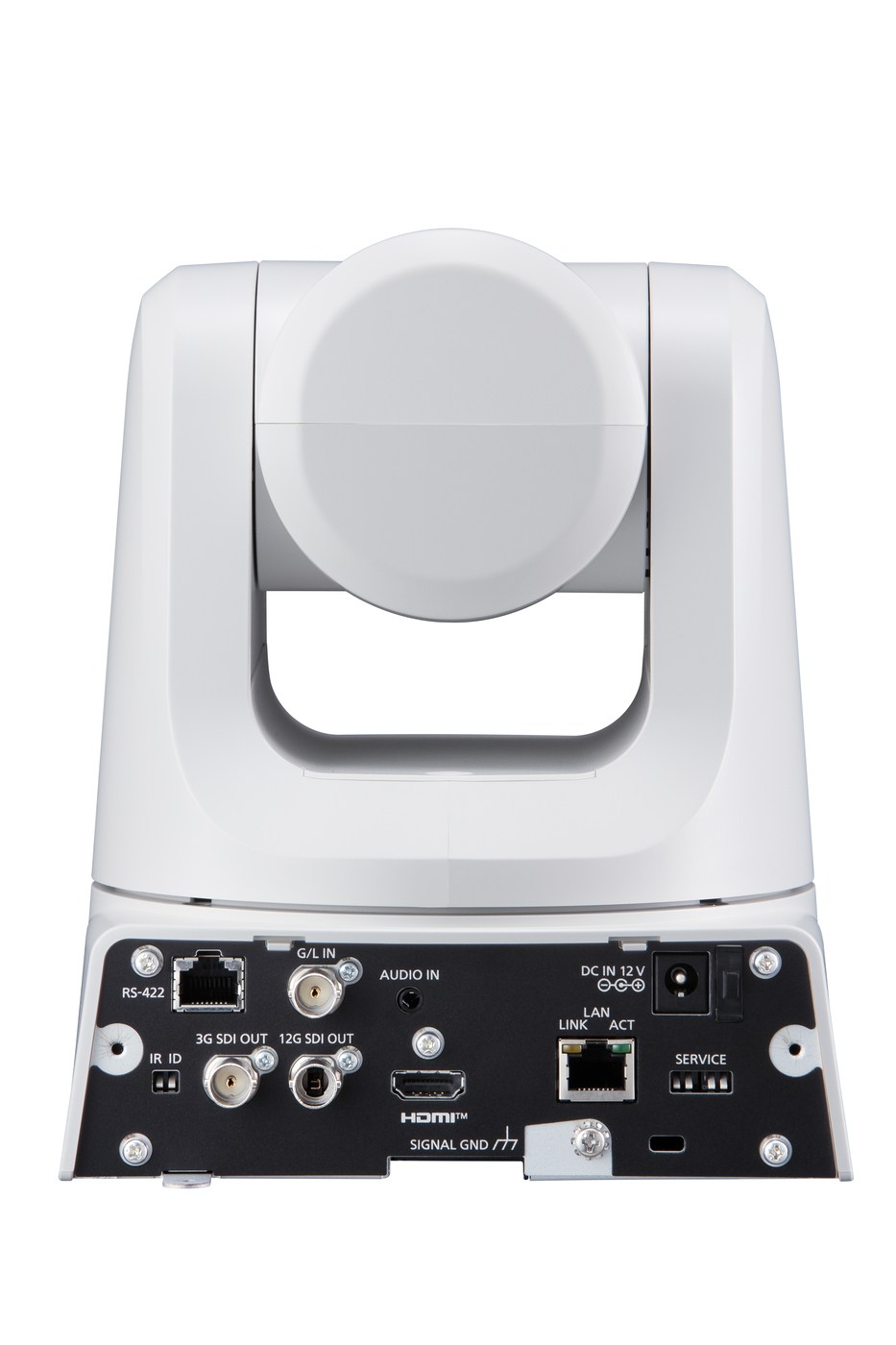

| HDMI | HDMI 2.0 connectorHDMI 2.0 connector4:2:2/10 bit*3*4 |
| Сеть | LAN for IP control and video transmission/PoE++ terminal (RJ-45) |
| RS-422 | CONTROL IN RS422A (RJ-45) |
| 12G-SDI OUT | SMPTE2082-1, SMPTE292 compliant/75 Ω (BNC x 1)*5 |
| 3G-SDI OUT | SMPTE292/75 Ω (BNC x 1)*5 |
| MIC/Line Input | Supported (SDI/HDMI/IP), AAC compatible (IP only) O3.5 mm stereo mini jack For mic input, input level: -40 dBV (0 dB = 1 V/Pa, 1 kHz) plug-in power compatible, supply voltage: 2.5 V ±0.5 V For line input, input level: -10 dBV Input volume variable range: -36 dB to 12 dB (3 dB step) embedded audio output level: -12 dBFS Sampling frequency: 48 kHz Quantified bit count: 24bit (SDI, HDMI), 16bit (IP) |
| Разрешение | 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180 |
| Диапазон наклона | -30° ... 210°*6 |
| Диапазон панорамирования | ±175° |
| Формат сжатия видео | JPEG (MJPEG), H.264, H.265, NDI|HX, High bandwidth NDI |
| NDI Support | NDI, NDI|HX: Included as standard*7*8 |
| Механическое панорамирование / наклон | технология прямого привода |
