| Технические характеристики AW-UE150 | |
| Требования к питанию | 12 V DC (10.8 V to 13.2 V) |
| PoE++ | IEEE802.3bt standard: DC 42 V to 57 V (Camera Input) |
| Потребление тока | 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) |
| Рабочая температура | 0°C ... 40 °C |
| Влажность | 20 - 90% (без конденсата) |
| Температура хранения | -20 °C ... 50°C |
| Вес | 4,2 кг |
| Размеры | 213 x 267 x 219 мм |
| Поддерживаемый контроллер | AW-RP150GJ |
| Датчики изображения | 1-type 4K MOS×1 |
| Линза | Motorized Optical 20x zoom, F2.8 to F4.5Motorized Optical 20x zoom, F2.8 to F4.5[f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches); 35 mm (1-3/8 inches)equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches)] |
| Зум | • Optical zoom: 20x• Optical zoom: 20x• i.Zoom: UHD 24x, FHD 32x• Digital zoom: 10x |
| Угол обзора | Horizontal angle of view: 75.1° (wide) to 4.0° (tele)Horizontal angle of view: 75.1° (wide) to 4.0° (tele)Vertical angle of view: 46.7° (wide) to 2.3° (tele)Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
| Оптический фильтр | Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) |
| Фокус | Switching between auto and manual |
| Дистанция фокуса | Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft) |
| Оптическая система цветоделения | 1MOS |
| Стандартная чувствительность | F9, 2000 lx (When normal mode is selected) |
| Минимальное освещение | 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation) |
| S/N | 60 dB or more |
| Горизонтальное разрешение | 1600 TV lines Typ (Center area) |
| Gain Selection | Auto, 0 dB to 36 dB*2 Super Gain function equipped : +37 dB to 42 dB |
| Frame Mix*3 | 0 dB, 6 dB, 12 dB, 18 dB, 24 dB |
| Электронная скорость затвора | 59.94p/59.94i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 29.97p 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 23.98p/24p 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 50p/50i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 25p 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Синхронное сканирование | 59.94p/59.94i : 60.00 Hz to 7200 Hz 29.97p : 30.00 Hz to 7200 Hz 23.98p/24p : 24.00 Hz to 7200 Hz 50p/50i : 50.00 Hz to 7200 Hz 25p : 25.00 Hz to 7200 Hz |
| Gamma | HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG |
| Баланс белого | ATW : 3200K, 5600KATW : 3200K, 5600KATW Speed : Normal / Slow / FastAWB : AWB-A / AWB-BVAR (selectable between 2000K and 15000K by designating a value) |
| Изменчивость количества цветности | OFF, -99 % to 99 % |
| Выходной формат | 4K 2160/59.94p, 2160/50p, 2160/29.97p*4, 2160/25p*4, 2160/24p*4, 2160/23.98p*4 HD 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Система синхронизации | Internal / External synchronization (BBS / Tri-level sync) |

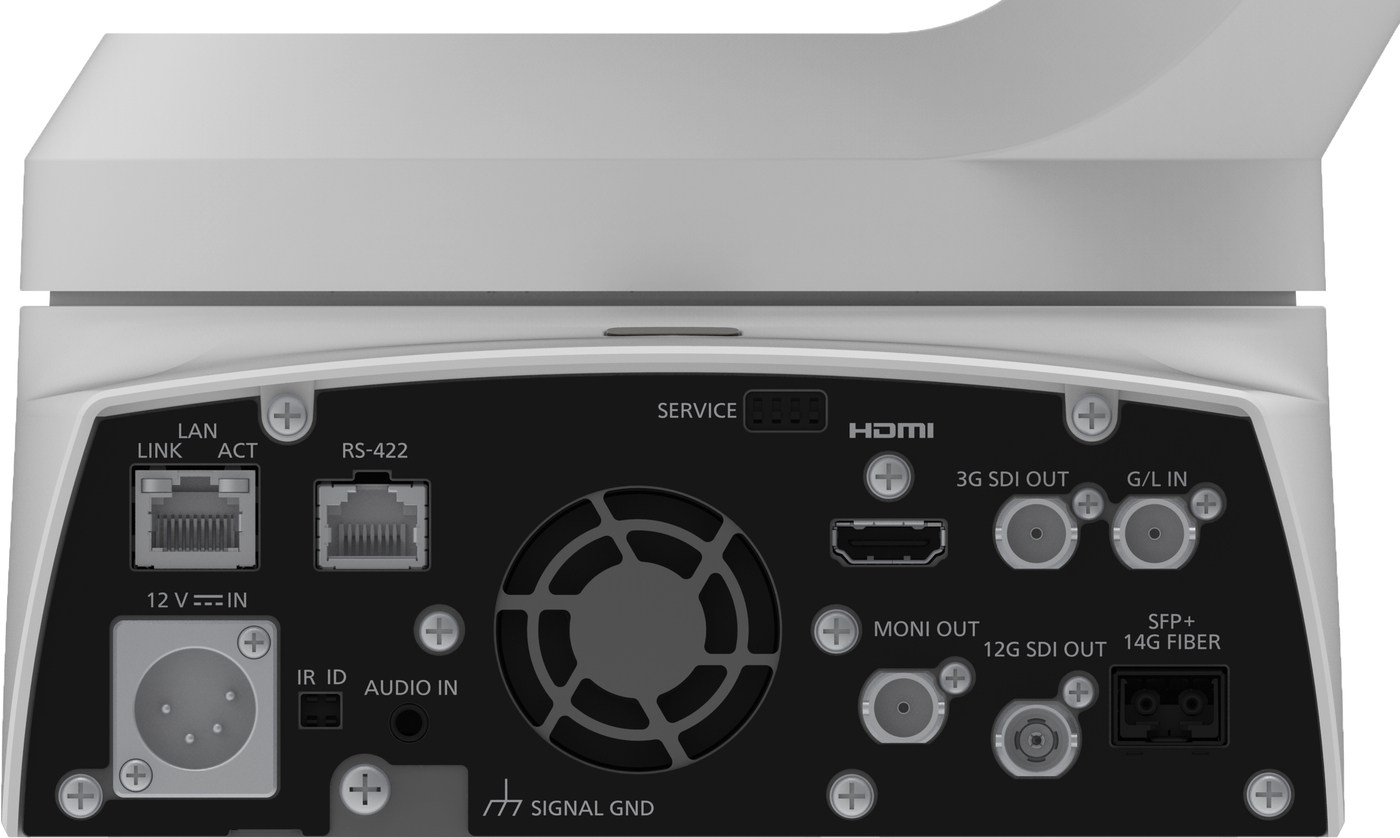

| Входной разъем | DC 12 V IN, G/L IN (BNC) • BBS (Black Burst Sync), tri-level sync supported |
| Видео выход | HDMI HDMI 2.0 standard 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported. 12G-SDI OUT SMPTE 2082-1 standard / 75 Ω (BNC x 1) 3G-SDI OUT SMPTE292 / 75 Ω (BNC x 1) • Level-A/Level-B supported MONI OUT SMPTE292 / 75 Ω (BNC x 1) Optical Fiber SFP+ standard Single Fiber • The signal sent is the same as 12G-SDI OUT. • This unit does not support input by optical signals. |
| Разъем входа / выхода | LAN LAN connector for IP control (RJ-45) RS-422 CONTROL IN RS-422A (RJ-45) MIC/LINE input φ3.5 mm stereo mini jack Input impedance: High impedance • During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. -40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz) • During LINE input Input level: Approx. -10 dBV ±3 dBV |
| Управление камерой / наклонно-поворотной | IP connecting cable • LAN cable*6*7 : (category 5e or above, straight cable / crossover cable) max. 100 m (328 ft) AW protocol connecting cable LAN cable*6 (category 5e or above, straight cable) max. 1000 m (3280 ft) |
| Способ установки | Stand-alone (Desktop) or suspended (Hanging)*8 |
| Скорость панорамирования / наклона | Minimum speed 0.08°/s Maximum speed 60°/s or higher*9 • Maximum speed is 180°/s in high-speed mode |
| Диапазон панорамирования | ±175° |
| Диапазон наклона | -30° to 210°*10 |
| Тишина | NC35 or less |
| Поддержка ОС и браузеров | Windows Microsoft(R) Windows(R) 7, 10 Windows(R) Internet Explorer(R) 11 (64-bit/32-bit) Microsoft Edge Google Chrome Mac Mac OS 10.13, Mac OS 10.12, Mac OS 10.11, Safari 11, Google Chrome iPhone / iPad iOS 11.4.1 Google Chrome |
| Режим потоковой передачи изображений | JPEG (MJPEG), H.264, H.265 |
| Разрешения изображений | 3840×2160, 1920×1080, 1280×720, 640×360, 320×180 |
| Настройка передачи изображения (JPEG) | Frame Rate: Maximum 30 fpsFrame Rate: Maximum 30 fpsImage quality (Fine / Normal) |
| Настройка передачи изображения (H.264) | ■Frame Rate [60Hz] 5fps/15fps/30fps/60fps (UHD: 30fps, 60fps) [50Hz] 5fps/12.5fps/25fps/50fps (UHD: 25fps, 50fps) ■Max Bit Rate HD : 512kbps/768kbps/1024kbps/1536kbps/2048kbps/3072kbps/4096kbps/6144kb ps/8192kbps/10240kbps/12288kbps/14336kbps/16384kbps/20480kbps/24576kbps /32768kbps/40960kbps/51200kbps/76800kbps UHD : 12800kbps/25600kbps/51700kbps/76800kbps |
| Настройка передачи изображений (H.265) | ■Image Transmission Type: Unicast port (AUTO) Unicast port (MANUAL) Multicast port ■Frame Rate [60Hz] 30fps [50Hz] 25fps ■Max Bit Rate 8192kbps/12800kbps/25600kbps/51200kbps/76800kbps |
| Сжатие звука | AAC-LC, 48 kHz / 16 bit / 2ch |
| Поддерживаемые протоколы | ■IPv6 : TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP,■IPv6 : TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP,ARP, RTMP■IPv4 : TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS,DDNS, NTP, UPnP, IGMP, ICMP, ARP, RTMP |
| NDI support*12 | NDI | HX |
| Цвет дисплея | red / green |
